Overview

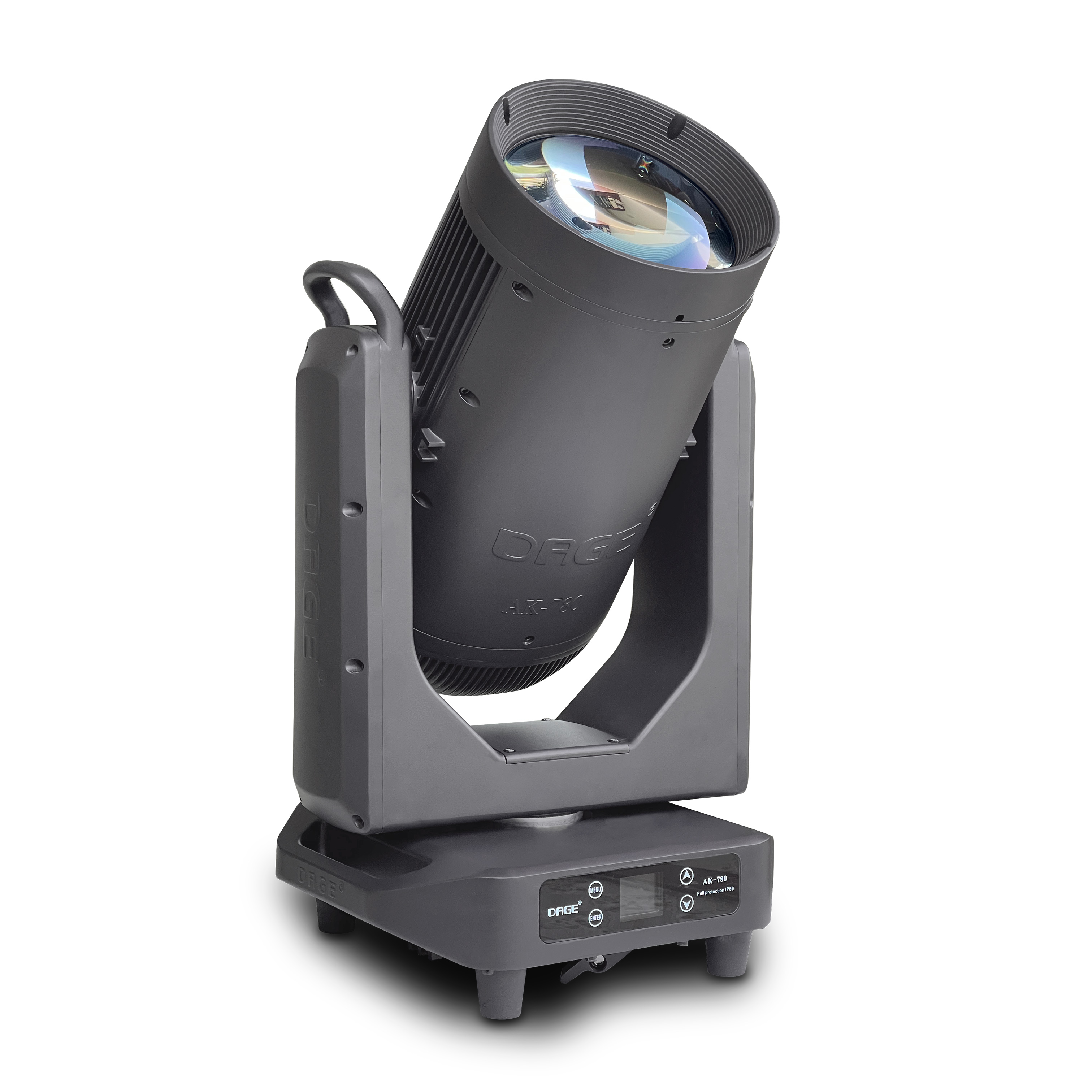

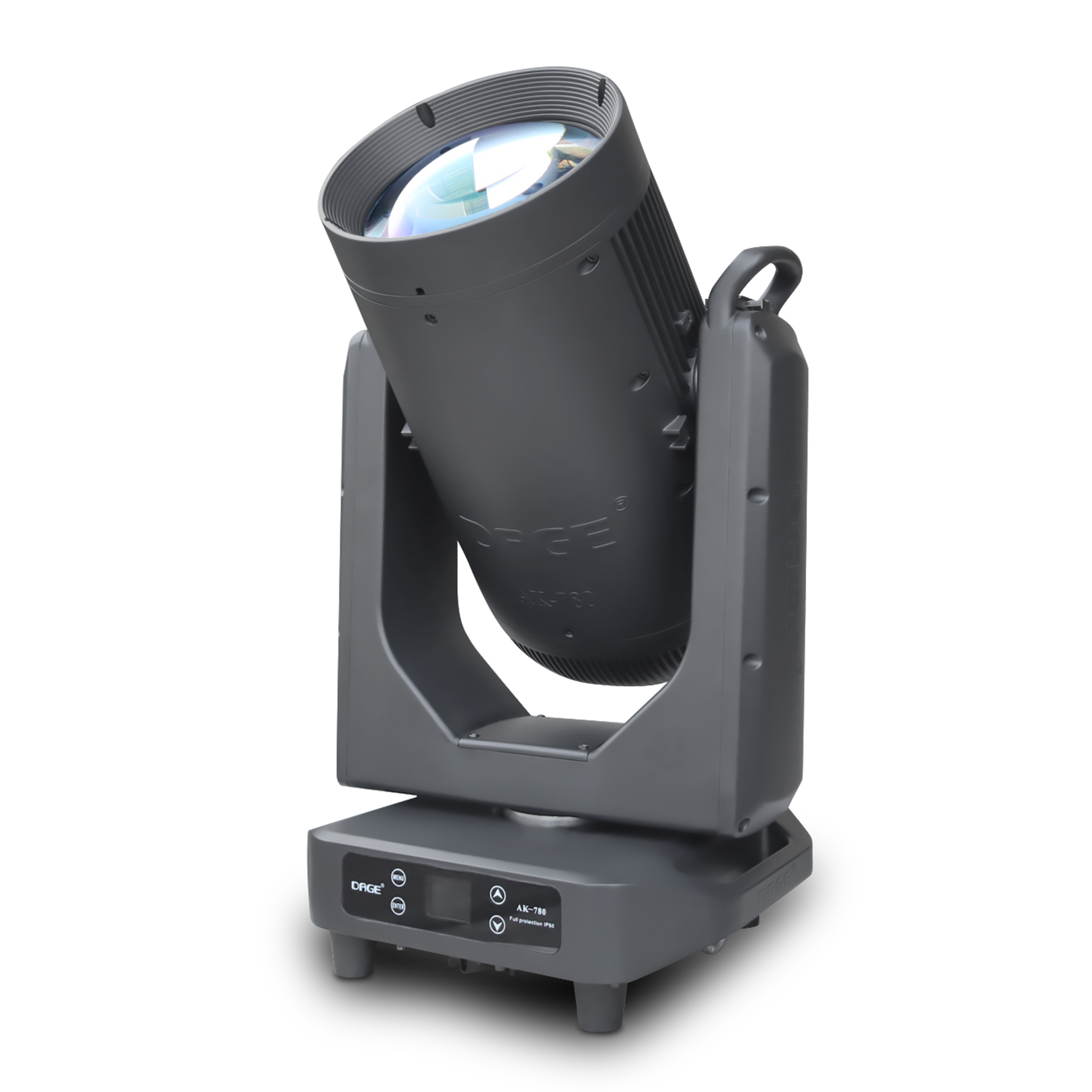

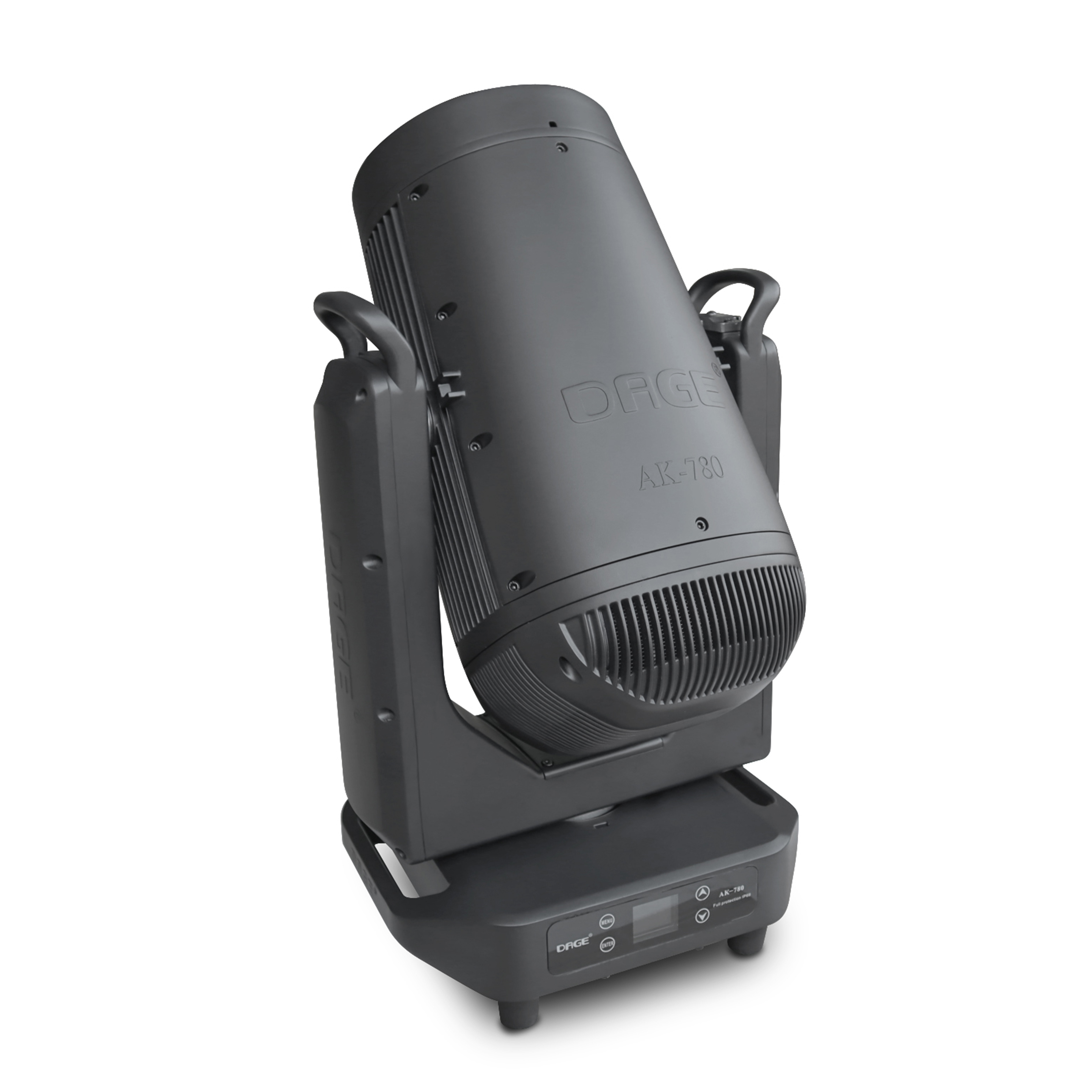

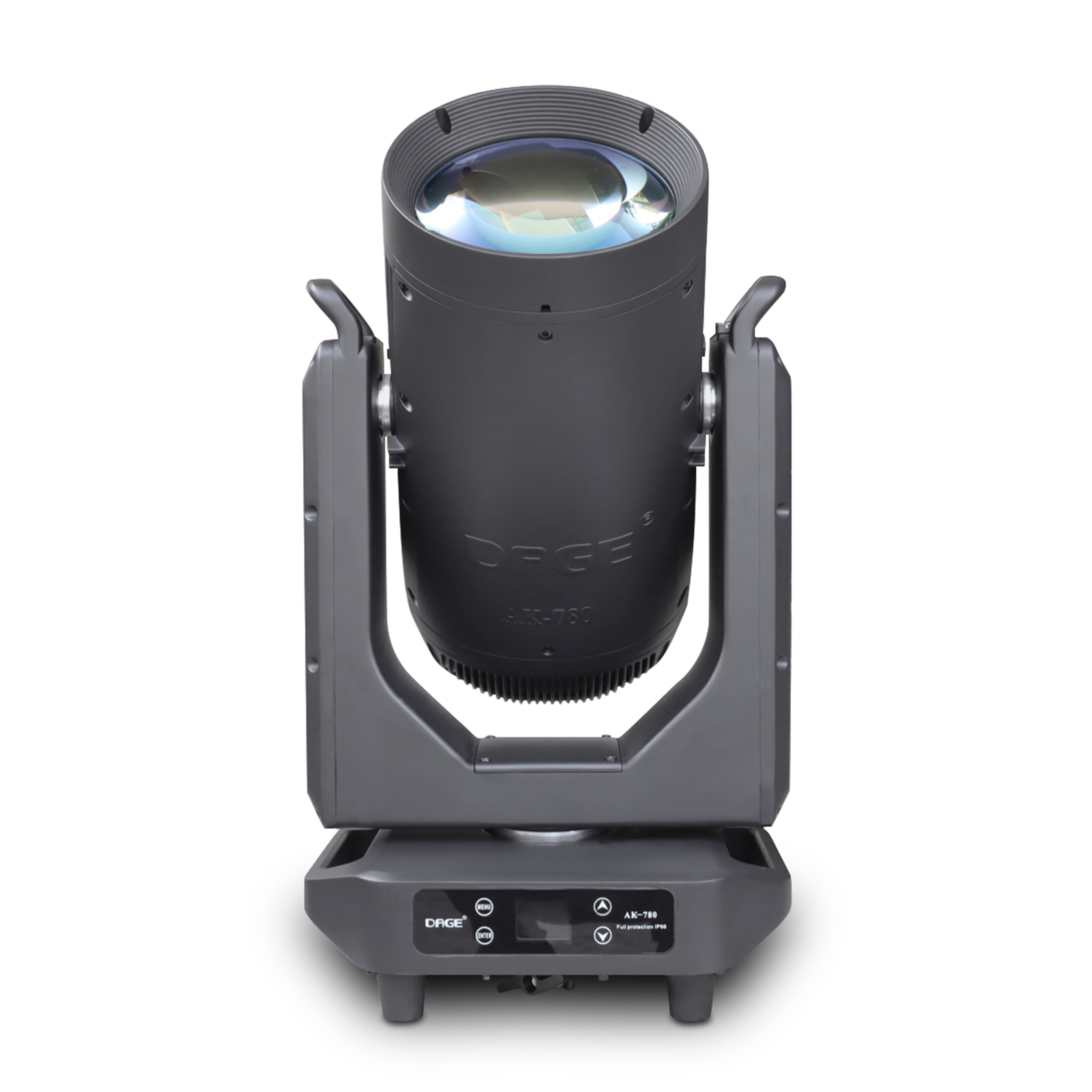

AK-780 is a compact, high luminous efficiency full-protection beam light.
A ideal fixture for outdoor large-scale concerts, TV programs & different type music events.
With an IP66 waterproof rating, the AK-780 is exceptionally resistant to dust, oil, and corrosion-resistant capabilities. Features a self-developed optical lens for intense light concentration and high-intensity zoom.
User-Friendly Design: Integrated folding hook, built-in battery for addressing without power, RDM support for remote addressing, and an auto-adjusting prism function.
Advanced linear CTO color temperature system to effectively manage remote stage lighting.
With DAGE 19 years professional quality expertise, relying on rich and superior hardware facilities and production processes, the performance and quality of AK-780 Optimus Prime remain
consistent, with unique charm and endless possibilities.

OPTICAL SYSTEM
Light Source : OSRAM 420W, 6000h
Color temperature: CTO 2500-6000k
beam angle: 0.9° Auto beam and prism focusing function
Optical lens’s dia.190mm.
DAGE special Optical lens structure.
Heat protection glass:Italian special high-temperature resistant materials, sourced from Germany's high-tech coating technology, ensuring sufficient insulation and transparency of the lighting fixtures.
Electronic focusing: Ultra smooth adjustment of focal length, with clear range that can be adjusted freely. The unique optical path structure makes the beam feel stronger and brighter.
DISPLAY SYETEM
Display mode: 20 million pixel color LCD screen;
Built in self charging battery, edit menu when no power is available;
The screen can display upright or inverted.
Detection device: When the light fixture malfunctions, a red light alarm will appear, indicating the problem of the malfunction, convenient for product maintenance.
CONTROL SYSTEM
International standard DMX512
18 CH
DMX, random, voice mode
Using high-tech constant current PCB board, 36V / 24V voltage.
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard
DATA INTERFACE
3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors
POWER SYSTEM
650W, power fluctuations (± 50W) works normally
AC90-260V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard
Three-pin male and female data interface, dual hand in hand power interface
STROBE SYSTEN
Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control
COLOR SYSTEM
Imported Italian specialty high temperature materials, Germany's high-tech coating technology

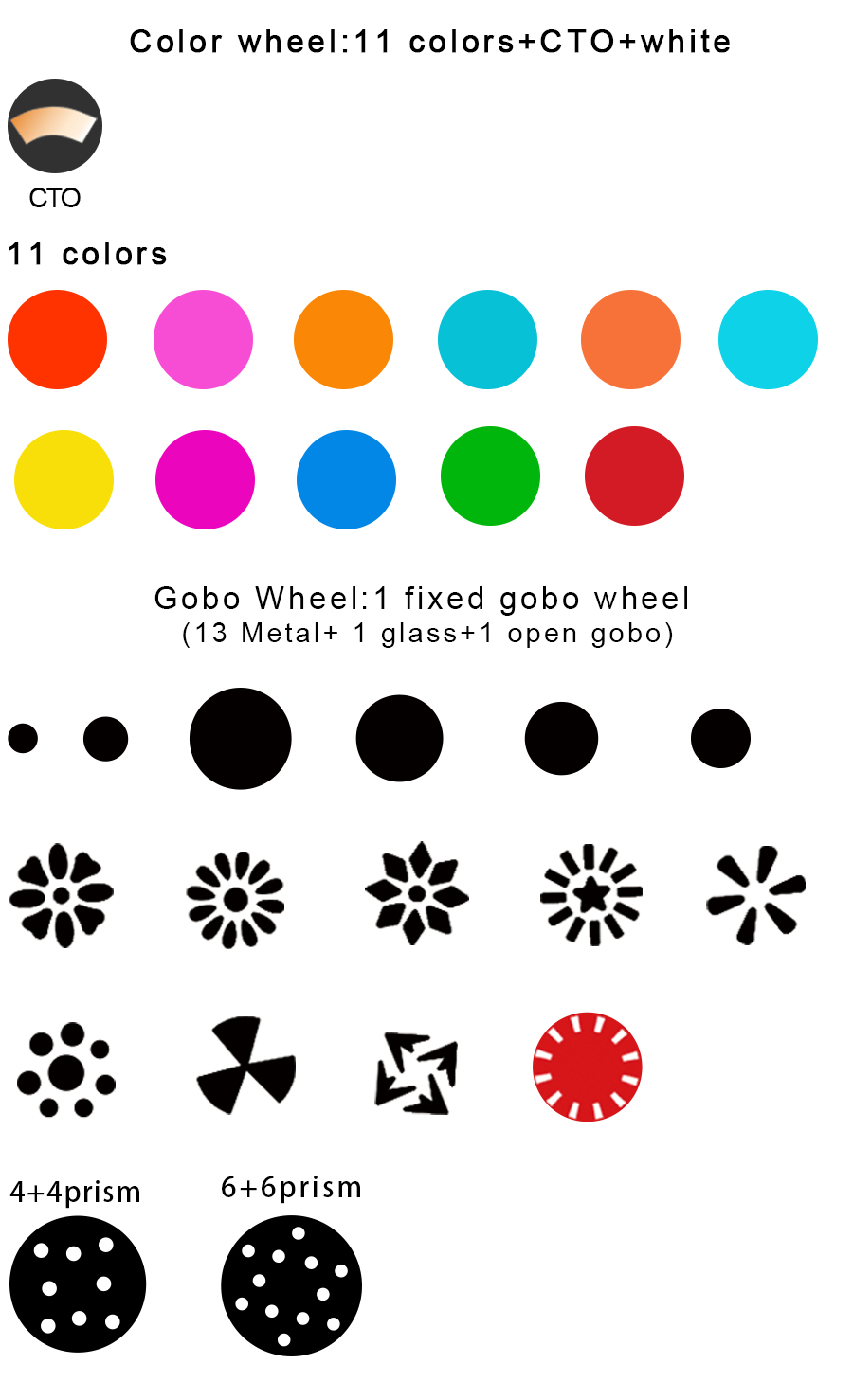

1 fixed color wheel, 11 colors+open+CTO
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned.
GOBO SYSTEM
1 fixed gobo wheel: 12 metal gobo+ 1 glass gobo+open
enabling water, shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned
FROST SYSTEM
Frost setting:Independent high transparency atomizing lens, achieved through electric focusing, with uniform and soft atomization.
Frost angle: Widest 50°
PRISM SYSTEM
Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
8 facet prism and 6+6 prism, with a maximum opening angle of 50 degrees.
Combined with pattern function, it can independently switch between 8+12+20 beam effects.
COOLING SYSTEM
Heat dissipation structure: integrated dual nozzle heat dissipation system
Fixture material:Excellent aluminum material, good heat dissipation and light weight
Number of fans: Install a silent cooling fan on the lamp base; The light bulb system is equipped with four silent fans.
Thermal protection: Built in overheating protection, fan automatically tracks temperature, intelligent adjustment, keeping all components of the lamp in a lower temperature environment, which can extend the service life.
ROTATION SYSTEM
XY motor: Fast and quiet 3-phase motor
XY position: The XY axis adopts the advanced magnetic coding positioning provides excellent stability and amazing sensitivity.
X-axis angle: 540°, 16/32-bit, accuracy 2.62 °/step, fine accuracy 0.018 °, rotation 2.1 sec.
Y-axis angle: 260°, 16/32-bit, accuracy of 2.12 °/step, fine accuracy of 0.016 °, rotation 1.2 sec.
Effects
SIZE AND WEIGHT
Body size:37.5×32×65.9cm,  net weight: 26.5 kg
Carton size: **× **× **(cm) , G/W: ** kg
Flight case 2 in 1: 83× 51× 87(cm) , G/W: 94kg

ACCESSORIES
1pc User manual; 1pc insurance rope;; 2 aluminum clamps; 3 meters of signal cable; 3meters of power cable.
REMARKS
DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
