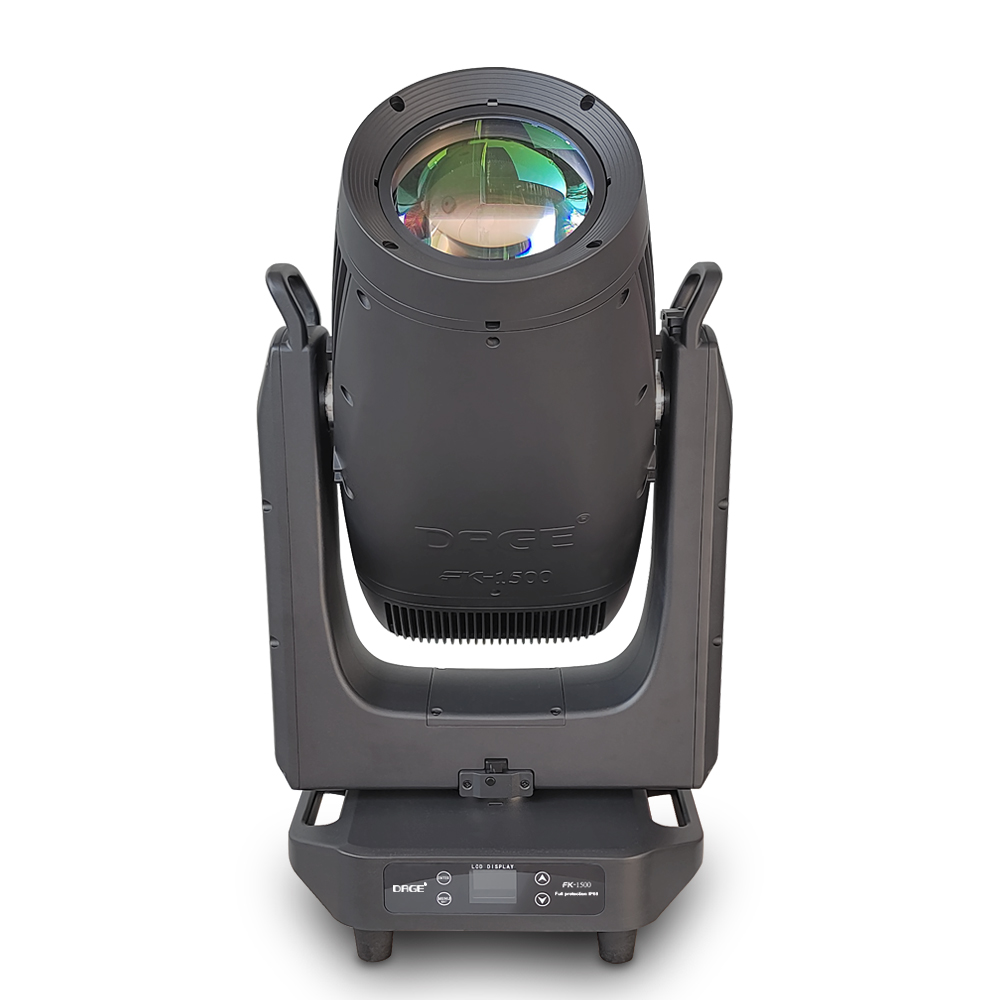

| Model ModelModel Name: FK-1500 Light SourceLamp: 1200W LED Module, Lifespan >20,000h Color Temperature:6500K.
Optical SystemLight Source: 1200W LED Module, Lifespan >20,000h, Color Temperature 6500K. Color Rendering Index: Ra≥95, R9≥95, R15≥95. Glass Lens: Custom-designed optical lenses.Germany technology. Optical Lens: 165mm the brightness difference between the edge and the center not exceeding 20%. Beam Angle: 4.5° - 50°. Electronic Focusing: Full-time linear ultra-smooth focus adjustment for clear imaging at any distance.
Display System Display: 16-million-color LCD screen with a built-in self-charging buffer battery. Control: Touch button operation.
Control System Control Channels: 36 CH, International DMX512. Software Update: Software updates via DMX connection. Control Modes: DMX mode, Random mode, and Sound-active mode are freely selectable. Main Circuit Board: Utilizes high-tech constant current circuit boards with dedicated 46V, 12V, and 24V power supplies for strong anti-interference capability. Data Cable: Data cables are cold-resistant and comply with CE20/22 standards. Data Interface: 1. Two 3-pin XLR connectors (male/ female) can be selected.
Power SystemRated Power: 1700W, with PFC power factor correction. Usable under power fluctuations of ±50W. Voltage/Frequency: Utilizes a self-developed AC90- 260V, 50/60Hz cold-resistant, frost-proof, and high-temperature resistant, compliant with CE 20/22 standards, with a daisy-chain design. Integrated luminaires: 3-meter signal cable. Grounding: Designed according to international grounding standards for enhanced safety and stability. Power Connectors: Configured with two power connectors for daisy-chain dual-power mode. | Strobe System High-Speed Strobe: 0 - 14 times/second. Linear Dimming: Independent dimming device for 0-100% linear dimming.
Color System Colors: 1 color wheel: White + 7 colors. Color Wheel Effects: Capable of half-color, full-color, single/dual-color graduation, and rainbow effects in both forward and reverse directions at variable speeds. Color Wheel Positioning: Equipped with Hall sensor and magnetic positioning, and automatic error correction at any angle.
CMY + CTO System CMY mixing system and CTO linear color temperature adjustment system. meet the stage lighting requirements of specific large theaters and other high-demand venues.
Gobo System Gobo Wheels: 1 fixed metal wheel with white +flowing pattern; 1 rotating glass wheel with white + 7 interchangeable gobos Custom logos available. Rotation angle is positionable and adjustable, with a maximum aperture of 50° Gobo Positioning: Equipped with Hall sensor and magnetic positioning, and automatic error correction at any angle.
Framing System Blade Material:Constructed from 4 pieces of high-quality, new, high-temperature resistant material. Framing Effects: Blades operate smoothly and quickly for cutting. The direction, speed, and angle of each blade are independently controllable. Framing Angle:The entire framing module can move smoothly and position precisely, with an adjustable rotation range of ±60°.
Iris System Motorized Iris:Fast motorized iris for linear spot scaling from 4.5% to 100%. Features macro functions for multiple effect variations. | Frost SystemFrost Angle:Linearly adjustable from 10° to 50°. Frost Adjustment: Independent frost device, achieved through motorized focus, resulting in a uniform and soft light spot.
Prism System Prism Structure: 4-facet prism. Prism Effects:Rotation angle is adjustable, with variable-speed forward and reverse rotation functions.
Cooling System Fan Configuration:The base 3 silent cooling fans; the light source system 4 silent fans, the light head interior has 3 silent cooling fans. Fans are intelligently controlled.
PAN/TILT SYSTEM Pan/Tilt Motors: three-phase motors, offering strong power, faster and smoother movement, and quieter operation. Pan Angle: 540°, 16/32bit, accuracy 2.62°/step, fine adjustment accuracy 0.018°, rotation time 2.5 seconds. Tilt Angle: 270°, 16/32bit, accuracy 2.12°/step, fine adjustment accuracy 0.016°, rotation time 1.6 seconds.
Fixture Design External Design: IP66 User-friendly multi-module structure. Magnesium alloy, lightweight body material.Water, dust, oil, and corrosion resistance Internal Design: DAGE's unique&powerful design expertise. Proprietary external design patent. Imitation is strictly prohibited. Light fixture dimensions and weight Body size: 399*365*720mm Net weight: 35KG Packing size: xx*xx*xx cm, xx KG/carton packing 1 in 1xx*xx*xx cm, xx KG/Flight case 2 in 1 |
