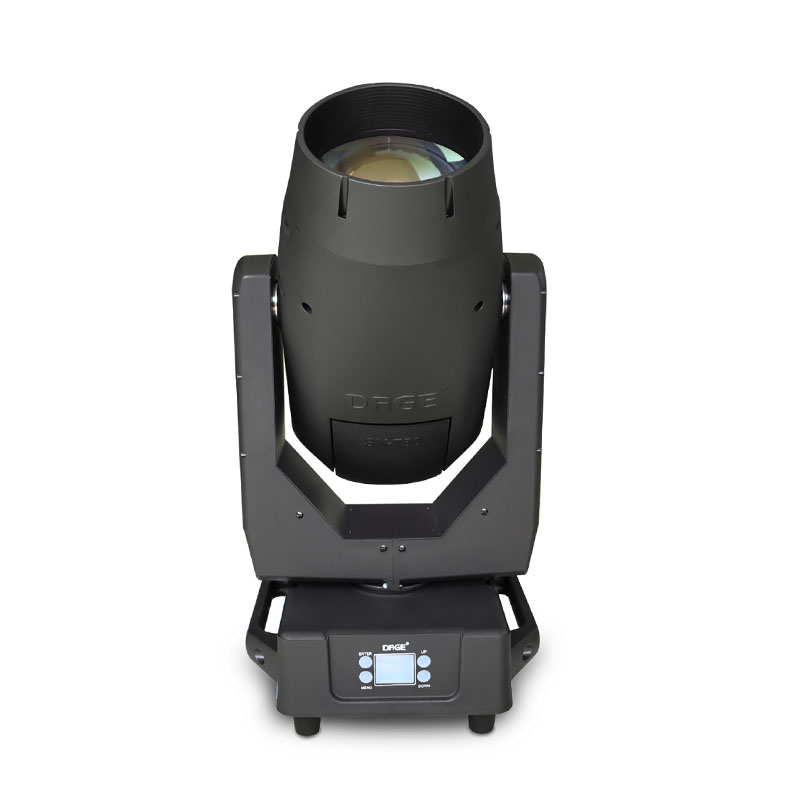

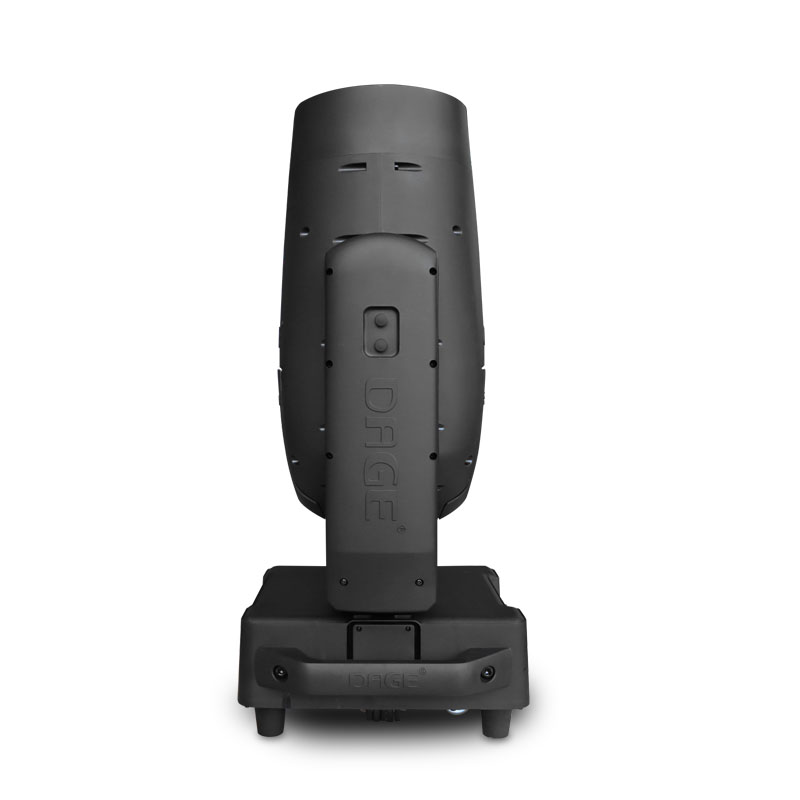

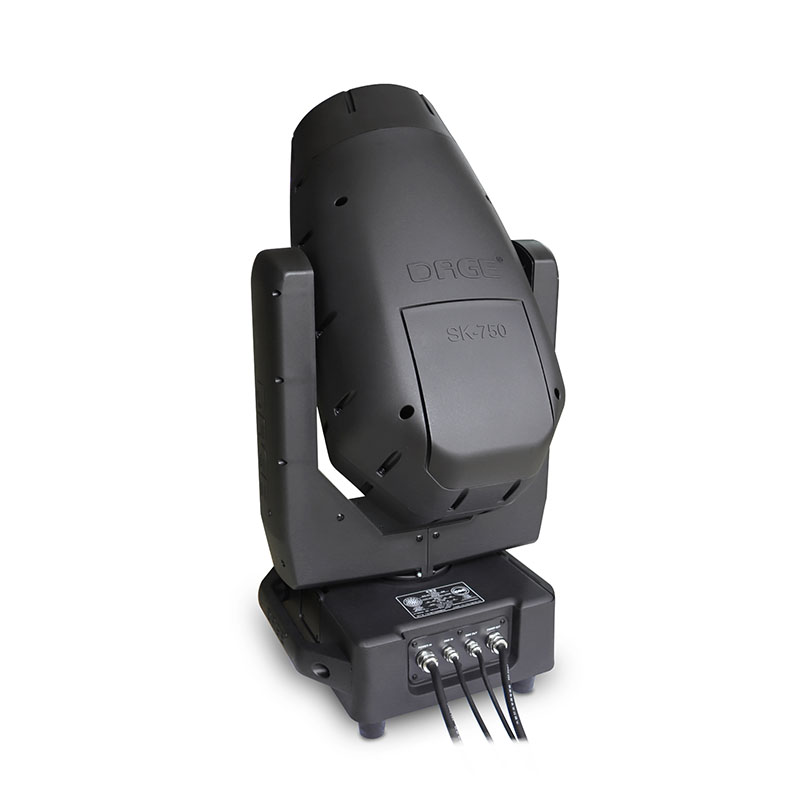

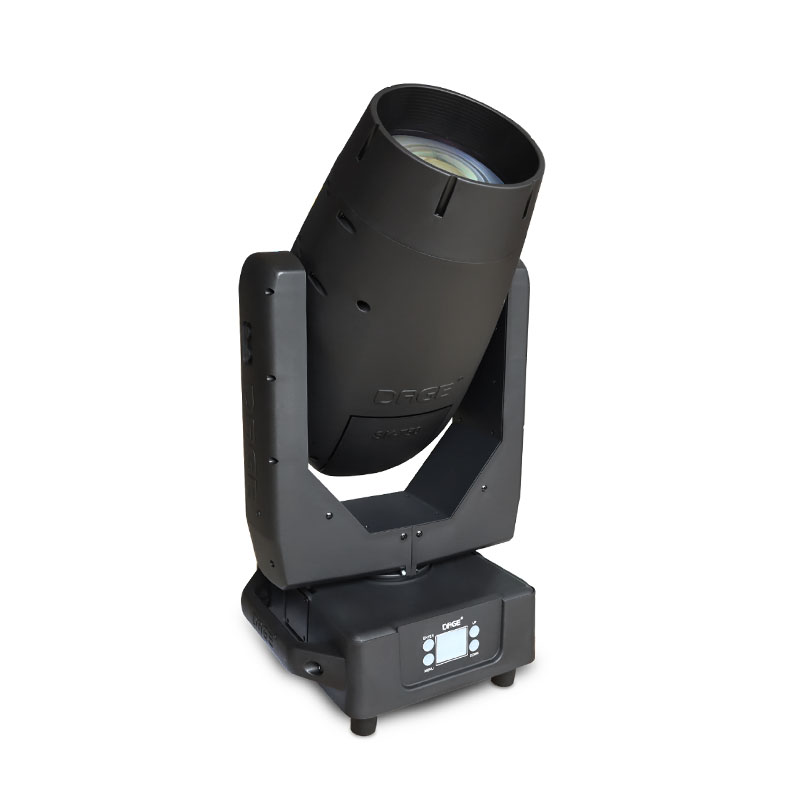

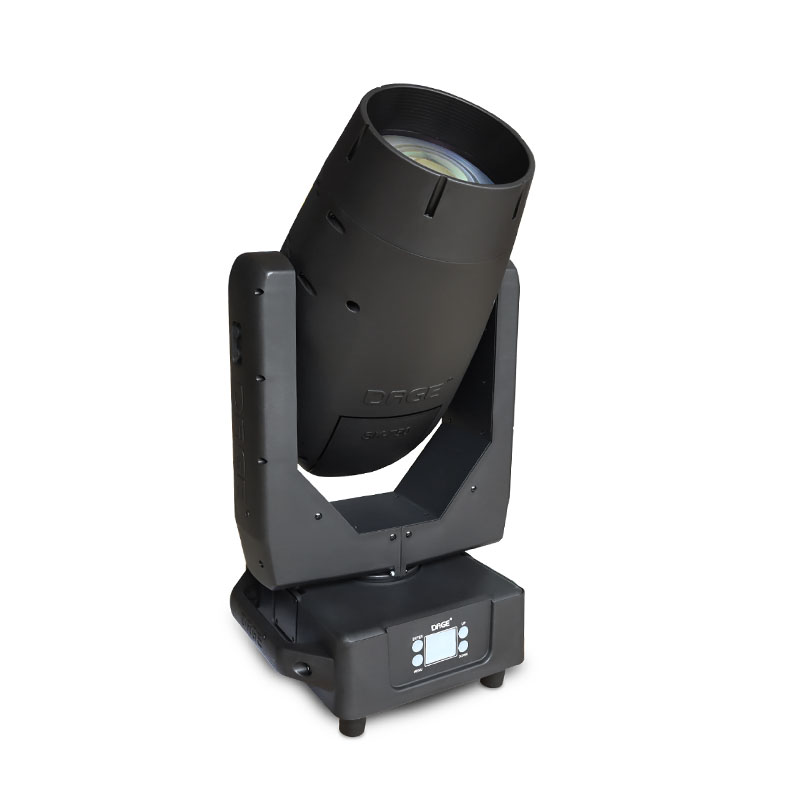

SK-750 PLUTUS ( IP65 420W BSW +CMY&CTO ) - DAGE Stage Lighting - Stage Moving Head Light Manufacturer-DAGE Stage Lighting

Overview

OVERVIEW
DAGE Waterproof SK-750 PLUTUS compares to the previous 3 in 1 is quite a high level improved. The unique design optical system output through a customized 182mm lens brings you a powerful, super-bright sharp beam (Over 160,000 lux@20m) by the beam angle of 2 degree!

Featuring a customized OSRAM 420W bulb, net weight only 31KG, the smooth CMY system,variable CTO & 3 color wheels create pure,fresh and vibrant colors. Built in 1 fixed Gobo wheel, 1 animation gobo wheel, 1 switchable rotation Gobo wheel provide you uniform, diverse & splendid spot effect. It combines 1 honeycomb prism, 1 8 facet prism, linear zoom, maximum opening angle from 2-80 degrees, 0-100% Full linear dimming, brightness adjustable.

Engined by DAGE proprietary developing internal hardware and software, more silent. high CRI R9>90, built-in battery is not powered for address coding, with RDM funciton,the XY axis adopts the advanced magnetic coding positioning provides excellent stability and amazing sensitivity, SK-750 is able to meet your real needs of beam/spot/wash in any professional stages!

OPTICAL SYSTEM

Light Source : Customized OSRAM 420W 20RLL, 3,000 hours
Color temperature: 7800K
beam angle: 2-80°, When the beam angle is 2 degrees, beam effect is the best.
Optical lens’s dia.182mm, DAGE special Optical lens structure.
Heat protection glass:Italian special high-temperature resistant materials, sourced from Germany's high-tech coating technology, ensuring sufficient insulation and transparency of the lighting fixtures.
Electronic focusing: Ultra smooth adjustment of focal length, with clear range that can be adjusted freely. The unique optical path structure makes the beam feel stronger and brighter.

DISPLAY SYETEM

Display mode: 20 million pixel color LCD screen, push-button.
Built in self charging battery, edit menu when no power is available;
The screen can display upright or inverted.
Detection device: When the light fixture malfunctions, a red light alarm will appear, indicating the problem of the malfunction, convenient for product maintenance.

CONTROL SYSTEM

International standard DMX512
29 control channels
DMX, random, voice mode
Using high-tech constant current PCB board, 36V / 24V voltage.
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

POWER SYSTEM

800W, power fluctuations (± 50W) works normally
AC90－260V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology
3 Color wheels: 1 with 6 colors+ C+open, 1 with 6 colors+M+open, 1 with Y+CTO
CMY linear color mixing can meet the art effect requirement of small-large size venues.
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned.

GOBO SYSTEM

3 gobo wheels
1 Metal Gobo wheel: 11 fixed gobo+1 dynamic gobo+open
1 Animation gobo wheel: 6 fixed gobo+2 animation gobo
1 Rotating gobo wheel: 7 rotation gobos(Interchangeable)+open, rotation in both directions, running alone or incombination with gobos to create the splendid water wave effect. Accurate pattern positioning.
Rotation gobo linear zoom angle up to 50°
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

COOLING SYSTEM

Heat dissipation structure: Integrated dual fans minimize temperature differences within the bulb, ensuring better lifespan and stability.
Fixture material:Excellent aluminum material, good heat dissipation and light weight
Fans:1 silent fans is installed in the base, 4 silent fans are installed for bulb system, another 1 was set for the head. The cooling fans are intelligently regulated and controlled, and the heat dissipation is intelligently controlled according to the usage status and requirements of the bulb, ensuring that the entire lamp body is always maintained within a predetermined temperature range.

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: The XY axis adopts the advanced magnetic coding positioning provides excellent stability and amazing sensitivity.
X-axis angle: 540°, 16/32-bit, accuracy 2.62 °/step, fine accuracy 0.018 °, rotation 2.5 sec.
Y-axis angle: 260°, 16/32-bit, accuracy of 2.12 °/step, fine accuracy of 0.016 °, rotation 1.6 sec.

ACCESSORIES

1pc User manual; 1pc insurance rope;; 2 aluminum clamps; 3 meters of signal cable; 3meters of power cable.

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
